Product Specifications
Sizes Available:
Select size to see available products
Colors Available:
Select color to see available products
Green

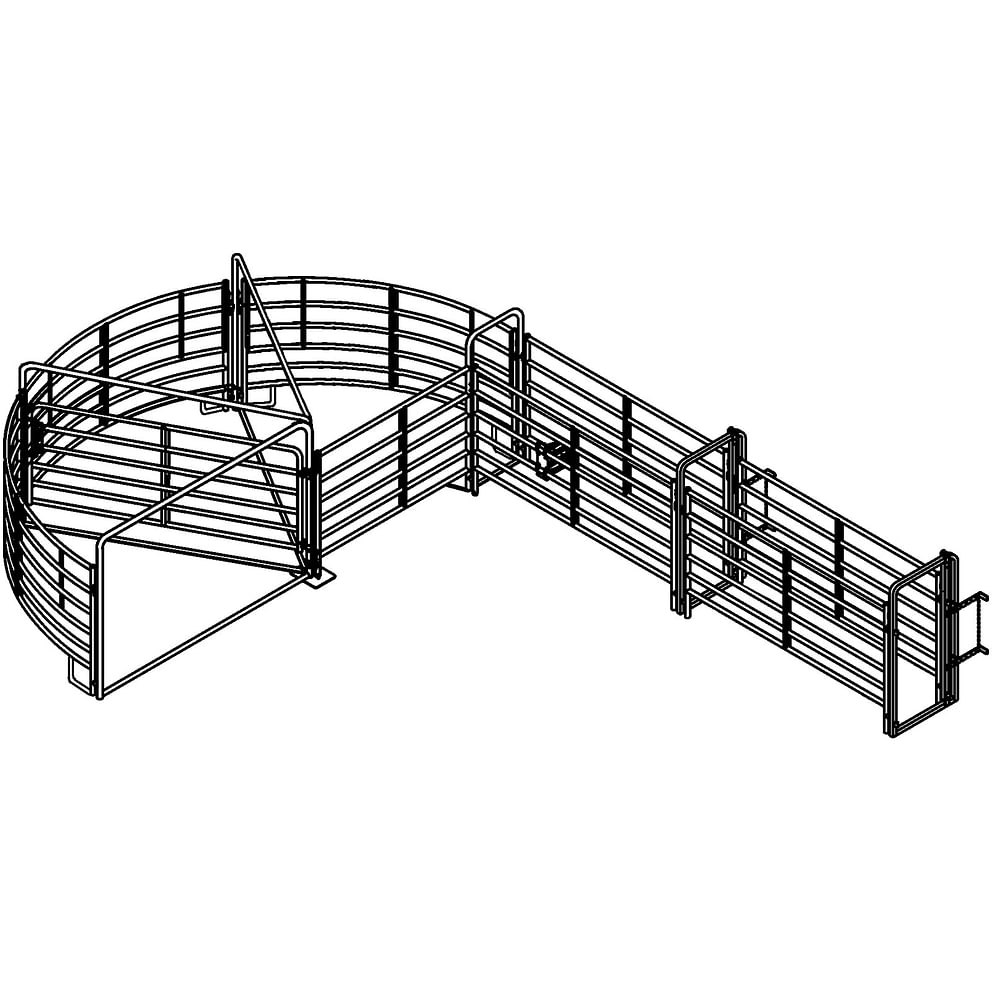

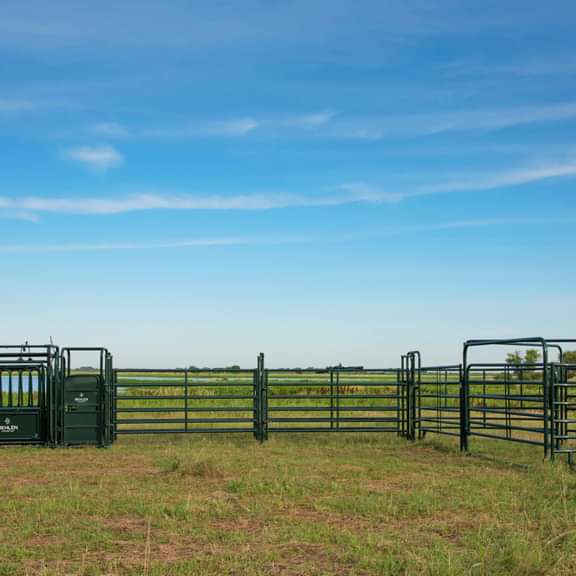

180° Sweep with 10′ straight lead-in panel complete with 20′ of adjustable straight crowd alley. Includes drop down no-back.
Kit 1
10' Gate Arch Only 1
Item # 46180222
10' Sweep Pen Gate 1
Item # 46160292
Sweep Pen Overhead Brace 1
Item # 46160312
10' Curved Sweep Pen Panel 3
Item # 46179572
Flat Ground Brace 2
Item # 46180212
Latch & Hardware 1
Item # 46180272
10' Straight Crowd Alley Panel 5
Item # 46160282
Unsheeted Adj. Alley Arch with Fender 1
Item # 64160622
Drop Down No Back 1
Item # 64160092
Unsheeted Adj. Alley Arch 2
Item # 64160612
Kit 2
10' Gate Arch Only 1
Item # 46180222
10' Sweep Pen Gate 1
Item # 46160292
Sweep Pen Overhead Brace 1
Item # 46160312
10' Curved Sweep Pen Panel 2
Item # 46179572
Flat Ground Brace 1
Item # 46180212
Latch & Hardware 1
Item # 46180272
Drop Down No Back 1
Item # 64160092
10' Panel with Alley Arch 1
Item # 46180232
10' Straight Crowd Alley Panel 2
Item # 46160282
Non-adjustable Alley Arch 1
Item # 46112232
Kit 3
10' Gate Arch Only 1
Item # 46180222
10' Sweep Pen Gate 1
Item # 46160292
Sweep Pen Overhead Brace 2
Item # 46160312
10' Curved Sweep Pen Panel 3
Item # 46179572
Flat Ground Brace 2
Item # 46180212
Latch & Hardware 1
Item # 46180272
10' Straight Crowd Alley Panel 4
Item # 46160282
Drop Down No Back 1
Item # 64160092
10' Panel with Alley Arch 1
Item # 46180232
Unsheeted Adj. Alley Arch 2
Item # 64160612
10' Sweep Pen Gate Only
WT 89 lbs
Item # 46160292
10' Gate Arch Only
WT 129 lbs
Item # 46180222
10' Curved Sweep Pen Panel
WT 116 lbs
Item # 46179572
10' Panel with Alley Arch
WT 109 lb
Item # 46180232
10' Straight Crowd Alley Panel
WT 94 lb
Item # 46160282
8' Straight Crowd Alley Panel
(also for use w/ platform scales)
WT 79 lb
Item # 46160272
Non-adjustable Alley Arch
WT 46 lb
Item # 46112232
Unsheeted Adjustable Alley Arch
WT 62 lb
Item # 64160612
Sweep Pen Overhead Brace
WT 31 lb
Item # 46160312
10' Unsheeted Cut Out Panel w/ gate
WT 113 lb
Item # 46160352
Unsheeted Alley Arch w/ Fender
WT 74 lb
Item # 64160622
Flat Ground Base
WT 27 lb
Item # 46180212
10' Unsheeted Crowd Alley Add-on
Includes (2) 46160282 and (1) 64160612
WT 248 lb
Item # 46179622
Drop Down No Back
WT 52 lb
Item # 64160092
20' Adj. Unsheeted Crowd Alley
WT 495 lb
Item # 46079592
Roller Gate
WT 285 lb
Item # 46168892
Latch & Hardware
WT 20 lb
Item # 46180272
Related Products and Parts

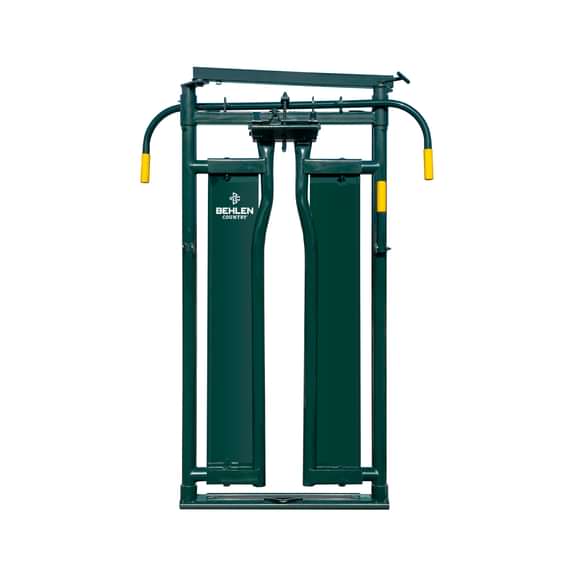

M-Series Manual Headgate
M-Series Manual Headgate features “Pos-o-lock” ratchet system, ensuring that cattle are caught safely and can’t...
LINK

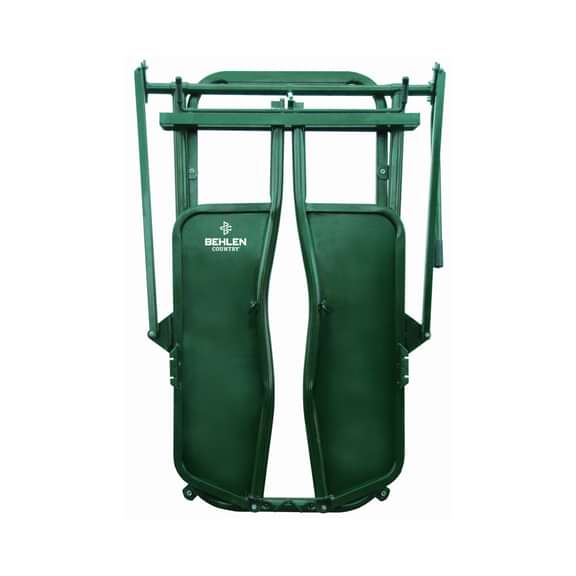

CL-5 Utility Headgate
